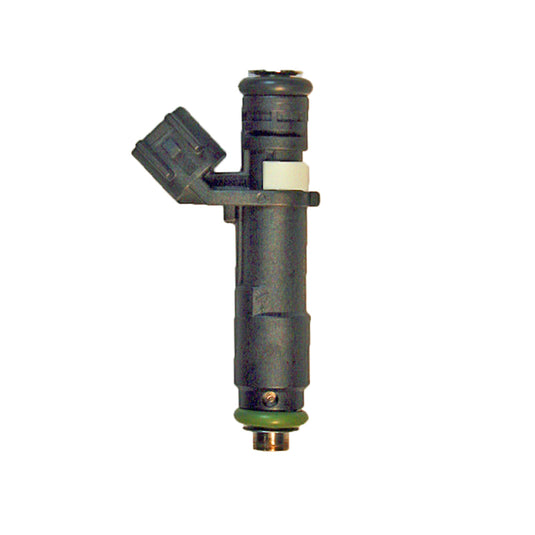

44lb/h Siemens Deka High Impedance (Long Style) with EV6 / USCAR Connector – FI114357 (60mm)

Genuine Siemens DEKA High Impedance Injectors

These injectors flow 44.5 lbs/hr at 43.5 PSI ( 3 BAR ) and much more at higher PSI! In addition, these units are high-impedance. Despite the high flow rate, they are linear and controllable at low pulse widths and have been used in ULEV applications! This allows you to use a larger injector than normally possible without hurting idle and low speed driveability. Adding to the flexibility of application, these units are high-impedance; making them compatible with most ECUs, while delivering the most flow available in a High-Impedance injector. These injectors represent the most current Siemens DEKA engineering and are used on many high power turbo and supercharged OEM applications.

These injectors are able to function at high fuel pressures and don’t exhibit the high fuel pressure handling problems found with many other high flow high-impedance injectors. This makes these injectors very well suited to turbocharged and supercharged applications that see high fuel system pressures and in fact, that is exactly what they were designed for!

Engine performance and running quality are enhanced through the optimized spray pattern. Unlike competitors “pencil stream” high flow injectors; these High Flow injectors utilize a multi-orifice tip for improved mixture preparation and atomization. This results in lower BSFC and better idle quality than many injectors with less flow.

Features:
Genuine, reliable Siemens Injectors
Excellent response characteristics
Robust Design
High Impedance
Low Impedance performance characteristics with High Impedance Compatibility

Specifications:
Coil Resistance: 12 Ohms (This high-impedance injector will work with all factory ECM/PCM injector drivers)
Gain: 0.75
Spray Pattern: Cone
Electrical Connector: USCAR (New-style V=EV6 / Oval / LS2)
Fitted with Viton upper and lower o-rings.
Static Flow Rate @ 43.5PSI (300kPa): 44.5 lb/hr = 5.86g/s = 478cc/min (+/-3%)
Static Flow Rate @ 58.0PSI (400kPa): 51.7 lb/hr = 6.77g/s = 552cc/min (+/-3%)
Dynamic Flow Rate 2.5ms PW @ 100Hz (400kPa): 11.42mg/pulse +/-4%

Cross Reference:
Siemens FI114357
Siemens 108357
Siemens 108337

Part Number: FIC44DEKA
