550 LB/HR 5500cc MORAN M.A.X. SERIES RACING INJECTOR

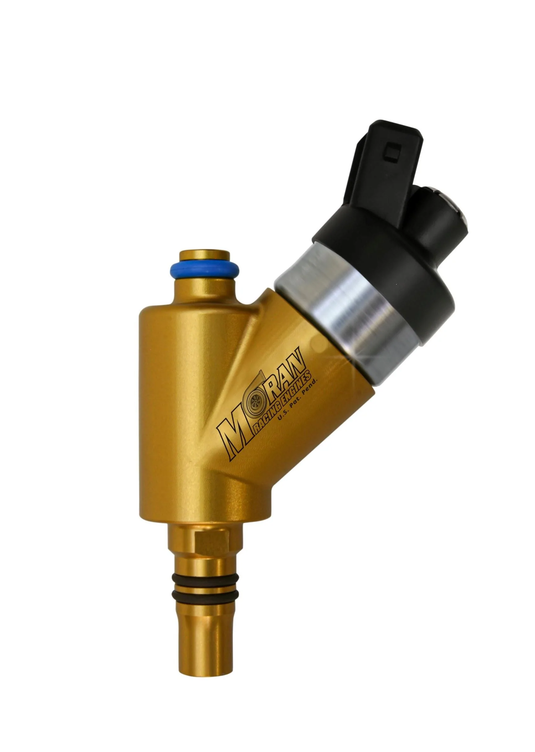

550 lb/hr / 5500 cc Moran M.A.X. Series Racing Injector

FUEL INJECTOR SPECIFICATIONS:
550 lb/hr Moran M.A.X.™ Series Racing Injector
PART# MRE205501
Static Flow Rate = 550 lb/hr
Impedence = Low
Resistance = 1.8 Ohms
Base Fuel Pressure Setting = 100 PSI
Nozzle Style = Spherical Disc (patent pending)
Spray Angle = Large Fog with 45 degree Vapor Cone Pattern

Moran M.A.X.™ Series Racing Injectors
The Gold Standard in Racing Injection

New Moran M.A.X.™ Series Injectors (Maximum, Atomized, Xtreme (pat. pending)
Purpose engineered for methanol
Race proven to be very durable, reliable and consistent
Finely atomized spray pattern yields better idle and more horsepower and prevents milky and diluted engine oil
Extended Tip Design (patent pending) allows for better atomization, quicker spool-ups and better idle control
Patent pending design allows for custom tailored spray pattern
Dual O-ring sealing design allows for higher boost capability and fitment on most intake manifolds

Moran M.A.X.™. Series Racing Racing Injectors are a true proprietary product that you can’t get anywhere else. Each injector is built in house and flow tested. Please call or email us if you have any questions, and we’ll be happy to assist you in any way.

Recommended Products

Filter - CAUTION - It is Mandatory to use a 10 Micron filter with our MRE Injectors. You must run a 10 micron filter between the injectors and the fuel pump tank.
- For GAS Users: Moran Motorsports recommends & sells Weldon 10 Micron fuel filters.
- For METHANOL Users: Moran Motorsports offers a 10 Micron stainless steel methanol safe filter with assembly.
