SKU: FIC60DEKASHORTY

60 LB Siemens Deka EV1 Shorty High Impedance FI114962

Regular price $59.95
Sale price $59.95 Regular price
Sale Sold out
Unit price
/per
Shipping calculated at checkout.
This is a pre order item. We will ship it when it comes in stock.

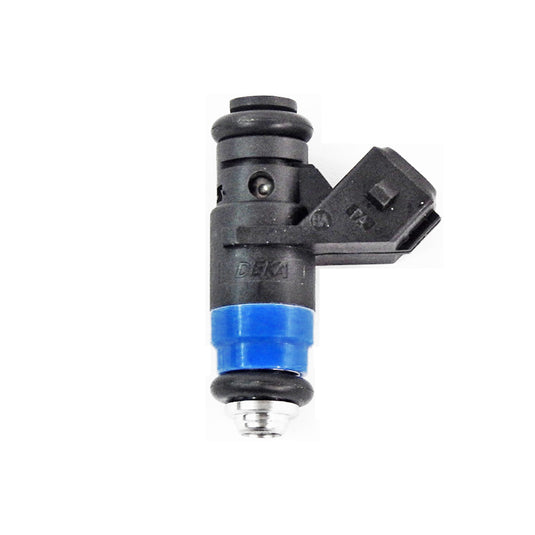

60lb/h Siemens Deka High Impedance (Mid Length) with EV1 Connector – FI114962 (48mm)

Genuine Siemens / Mototron DEKA IV High Impedance Injectors

Ultra-Compact, high flow injector at just 48mm end to end! These injectors flow 60 lbs/hr at 43.5 PSI ( 3 BAR ) and up to 85 lbs/hr at 87 PSI! In addition, these units are high-impedance. Despite the high flow rate, they are linear and controllable at low pulse widths and have been used in ULEV applications! This allows you to use a larger injector than normally possible without hurting idle and low speed driveability. Adding to the flexibility of application, these units are high-impedance; making them compatible with most ECUs, while delivering the most flow available in a High-Impedance injector.

These injectors are able to function at high fuel pressures and don’t exhibit the high fuel pressure handling problems found with many other high flow high-impedance injectors. This makes these injectors very well suited to turbocharged and supercharged applications that see high fuel system pressures.

Engine performance and running quality are enhanced through the optimized spray pattern. Unlike competitors “pencil stream” high flow injectors; these High Flow injectors utilize a multi-orifice tip providing a true 30 degree spray pattern for improved mixture preparation. This results in lower BSFC and better idle quality than many injectors with less flow.

Features:
Genuine, reliable Siemens Injectors
Excellent response characteristics
Robust Design
High Impedance
Low Impedance performance characteristics with High Impedance Compatibility

Specifications:
Coil Resistance: 12.5 Ohms / High Impedance / High-Z (No ECM driver modifications required)
Static Flow Rate @ 43.5PSI ( 300kPa ) w/Gas: 60 lb/hr = 630 cc/min = 453 g/min
Static Flow Rate @ 87PSI ( 600kPa ) w/Gas: 85.7 lb/hr = 900 cc/min = 648 g/min
Gain: 0.11ms/mg
Offset: 0.055ms
Turn on time @ 14VDC: 1.14ms
Turn off time: 0.85ms @ 600KPa
Connector: Minitimer EV1
Series: DEKA 4 ( DEKA IV )
Orifice Type: Multi-orifice
Spray Pattern: 30 Degree Spray Cone
Factory fitted with Viton upper and lower o-rings 37.5mm end to end

Equivalent Part Numbers:
Siemens FI114962 or 107-962 ( 107962 ) (including height adapter)
Mototron INJ-GAS-002 ( S107)

Price is per injector.
Part Number: FIC60DEKASHORTY

Please Read: Our fuel injector sets are custom fitted to your application. Please tell us your vehicle year, make, and model and leave the rest to us! Each set will be flow matched and come with a USB drive containing the data for your set.
