Miata 9697 MS3Pro PnP Plug and Play

Miata 9697 MS3Pro PnP Plug and Play Standalone Engine Management System for 1996-1997 USDM Mazda Miata with manual transmission
*Does not fit European or Japanese market 1.6 models, but it does fit 1.8 versions.

MS3Pro based Miata 9697 MS3Pro PnP takes plug and play engine management to the next level!  Easy to use and install!

Miata 9697 MS3Pro PnP Features:

• Fully Plug and Play Installation – No wiring required for basic functionality.
  • Average install time is under 1 hour!
• Base map is pre-loaded to help your engine start on the first turn of the key
• Real time tuning and data logging with a laptop connection
• 8 GB internal data logging with built in SD card
• Supports most aftermarket wideband sensors

Fully Tunable Engine Control!

• 16×16 Fuel Tables allow high resolution tuning
• 16×16 Ignition Tables
• Multiple Acceleration enrichment strategies
• Closed Loop Idle Speed Control
• Air Conditioner Control
• 4 sequential fuel injector channels with individual trim tables
• Onboard peak and hold drivers support both high and low impedance injectors – No external ballast resistor is needed!
• Allows removal of stock airflow meter

Miata 9697 MS3Pro PnP Advanced Feature Set (Included!)

• 12×12 Air Fuel Ratio Target Tables for use with wide band O2 sensor for precise tuning and table trim.
• VVT support if swapping to a later VVT motor
• Programmable voltage regulator control for NB alternator swaps
• Multiple traction control strategies
• Built-in 3-step rev limiter / launch control with flat shift and burnout rev limiter
• Real time barometric correction
• Internal 4-bar MAP sensor reads up to 44PSI of boost
• Overboost protection
• Closed loop boost control (Requires EBC solenoid kit – stock boost control solenoid does not allow adjusting boost level)
• Rally style anti lag
• Water injection control – on/off or variable
• Knock sensor input with adjustable sensitivity, crank angle windowing, and more
• Table switching input. Change fuel and spark maps on the fly for different fuels, nitrous activation, etc.
• Input for flex fuel sensor – switch between E85 and gasoline on the fly!
• CANBus connector allows interconnection of other MegaSquirt-compatible devices for additional functions (EGT Input, Automatic Transmission Controller, Additional Sensors…..the possibilities are limitless!

What you get in the box:

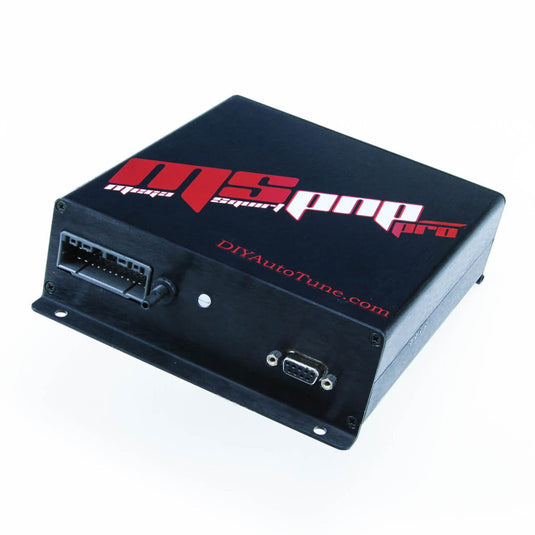

• Miata 9697 MS3Pro PnP ECU
• MSPNP RS232 serial tuning cable, 6′ (USB adapter sold separately, if needed)
• Tuning Software and Documentation on USB memory stick
• 6′ Vacuum Hose for MAP Signal and ‘T’ fitting
• Four Screws for ECU mounting
• Registered version of TunerStudio and MegaLog viewer included
