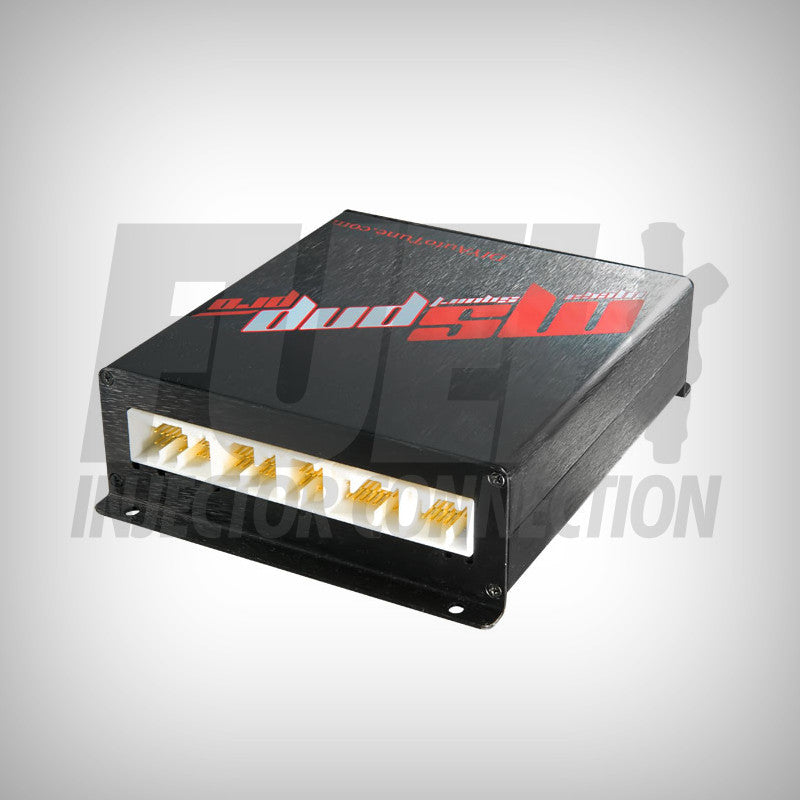

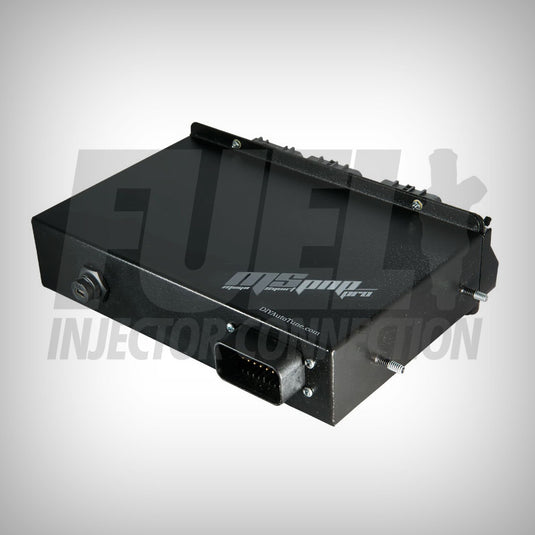

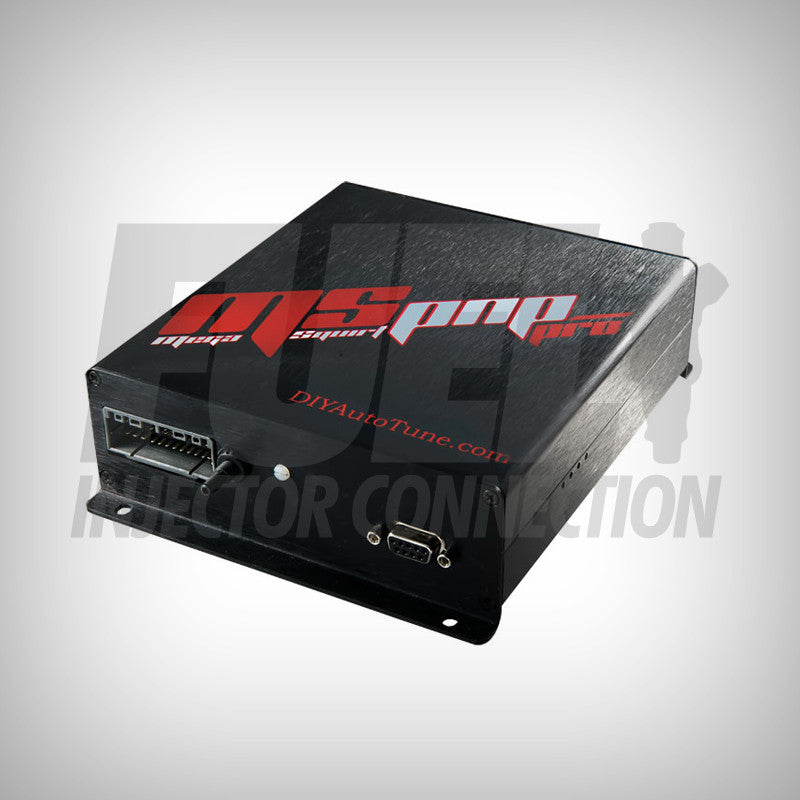

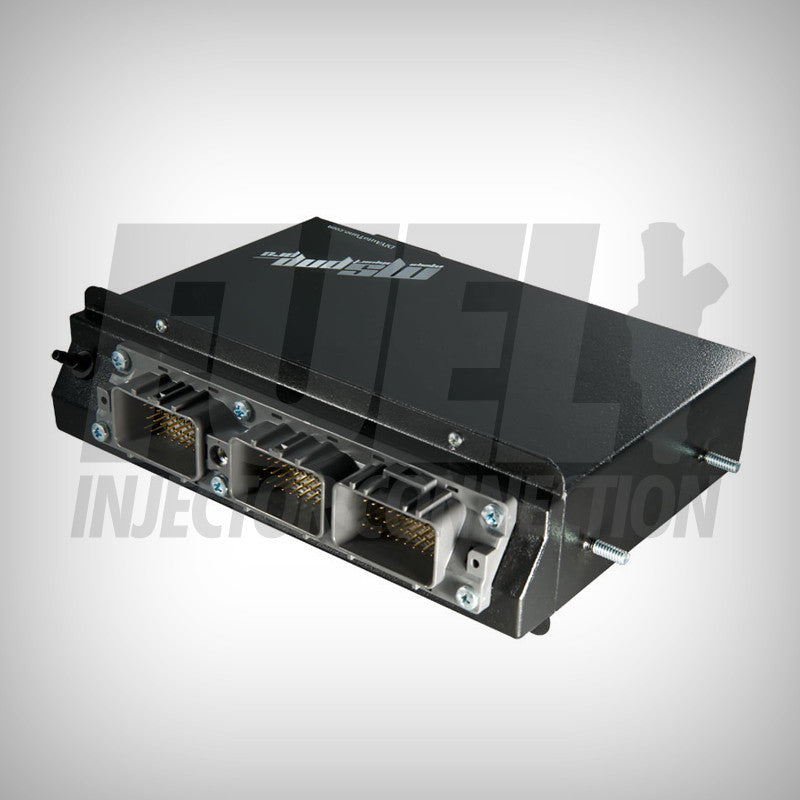

MSPNP-Pro harnesses the power of MS3-Pro in a plug and play package, complete with OE
connector ready to plug into your factory wiring harness, completely replacing the stock ECU*.
Most installations require no additional wiring and can be completed in under an hour.
Each system arrives pre-loaded with a base map to help you start your engine with the first turn
of the key, ready for fine tuning to match your engine's exact needs.
VE based tuning
No Static PW fuel tables with stacks and stacks of 'correction tables' required.
Very simple/logical approach to calibration minimizes tuning time required!
Speed Density, Alpha-N, MAF based tuning & blended algorithms
ITB Mode – blends SD and Alpha-N for excellent driveability with naturally aspirated, multiple throttle applications!
Custom blended strategies supported, mix/blend strategies to suit any engine
Fuel and spark advance algorithms can be set set independently
Up to 12 sequential saturated fuel injector outputs
Up to 12 cylinder sequential support
Any unused injector outputs can be used as high current digital or PWM outputs
Up to 8 sequential logic level ignition outputs
Supports single or dual coil distributor, wasted spark, and coil per plug
2D or 3D Table Views
The tuner can toggle between 2D or 3D table views with a single click
Individual cylinder fuel & spark trim tables
Per-cylinder, table based corrections for both ignition timing and fueling needs on a cylinder by cylinder basis. Correct for manifold airflow differences and fine tune each cylinder to perfection!
O2 sensors can be assigned per cylinder, allowing for perfect tuning and closed loop correction on a per cylinder basis
2 sets of user configurable tables for fuel, spark advance, and boost tables
Dual Fuel Support
Beyond table switching, adds control of 2nd fuel system (pump and injectors), and adds 2nd settings for injector characterization; fuel
stoichometric point; priming, warmup, cranking, and afterstart settings; alternate acceleration enrichment tables; boost tables; and over boost protection settings.
VVT Control (4 channels)
Open loop VVT control for 2-position camshafts
Closed loop control for fully variable camshafts
Controls up to 4 total VVT camshafts
Generic Wheel Decoder allows for support of nearly any standard trigger/aftermarket trigger pattern. 60-2, 36-1, 8-1, 4-1, pretty much anything!
Supports 50+ specialty OEM and aftermarket ignition systems using factory cam/crank wheels and sensors.
GM LS 24x
GM LS 58x
Toyota/Lexus 2JZ VVTi
Ford Zetec VCT
Chrysler New Hemi 36-2+2
Dodge Viper V10
Mazda Miata NA
Mazda Miata NB1 and NB2 (VVT)
Harley Davidson 32-2 V-Twin (uses MAP for phase detection)
Not a complete list — Many more supported trigger wheels
Support for oddfire and evenfire engines
Capable of controlling evenfire, oddfire, piston, rotary, and even radial engines
Fuel Only Mode
Disables ignition output features for control of fuel injection only
Internal SDCard high-speed data logging
No need for external datalogger!
8GB standard memory. Easily expandable to 16GB
Real time clock calender system for time and date stamped datalogs
Up to 28 channels at 100hz
No need to remove SD-Card to pull logs, pull them straight across the serial/USB cable to your laptop!
Traction Control – Multiple Strategies
Perfect Run (VSS over time)
Perfect Run RPM (Slew Control for classes where VSS is not allowed)
VSS % slip (compares front to rear or driveshaft speed)
E85 flex fuel sensor input
Extremely configurable for excellent performance and drieveability regardless of fuel gasoline versus ethanol content.
Compatible with easy to find GM flex fuel sensor
Configurable flex blend curve allows blending of fuel tables, spark advance tables, afr target tables, alternate start and warmup settings,
boost and overboost tables, and acceleration enrichment settings based on the exact concentration of ethanol in fuel
Compatible with YOUR wideband O2 controller.
You choose the wideband controller you want without being locked down. From the super cost effective to the mid-range, to full lab grade
Long Term Fuel Trim
OE Style automatic fuel trim to allow for changes in engine over time
High Power Time Enrichment
Allows for richer mixture after extended time in high power
Helps control cylinder and piston temperatures
Fully user configurable
Multiple Acceleration Enrichment Strategies
Basic time based and accel pump style AE
Advanced wall wetting model based (X-Tau and EAE) acceleration enrichment options
Staged Injection Control
Seamless transition to 2nd stage injectors for high power applications
Multiple user configurable strategies
Nitrous control strategies
2 channels of configurable staged or progressive control
Supports wet or dry nitrous systems
Add fuel, pull timing, etc.
Three-step rev limiter with flat shift
Line lock output
Flat Shift allows for No-Lift Shifting (holds RPM between shifts)
Trans Brake and Bump Box Control
No need for a separate box!
User configurable settings and reactions
Advanced Launch Control strategies
Digital switch based arming
Wheel speed based launch arming for rolling starts
Configurable timing retard after launch
Pit Lane Limiter
Speed limiter for pit lane, reduces engine power by spark retard/cut or fuel cut
Can limit based on VSS or RPM if no VSS input is available
Rally style turbo anti-lag with rotational idle
Allows cyclic fuel and spark cut
Controls idle valve and configurable outputs for external fuel or air supply
Boost Control – Multiple open & closed loop strategies
Table based open loop (DC solenoid control)
Table based closed loop (Target specific boost pressures by load/rpm)
Switchable boost tables for high/low boost options at the flip of a switch
Boost by Gear
Boost by Speed
Sequential shift spark cut
Configurable spark and fuel cut during shift
Solenoid output control for air shifter/drag application
Automatic shift point mode
Configurable per gear delay
Idle Control – Multiple open & closed loop strategies
Simple On/Off Idle Valve
PWM 2 or 3 wire valves
Stepper Motor 4 or 6 wire valves
Water and Methanol Injection
Configurable to use a variety of water/meth pumps
Table based injection allows for variable water/meth injection based on load and rpm
Low fluid level detection safety measures
Fuel Pump Control
“On/off” control of single or multiple stage pumps
PWM control of OE variable speed/pressure pumps
Intelligent Knock Detection and Response – 2 channels
Dual DSP based knock inputs with bandpass filters and dynamically adjustable gain
Noise threshold based
Windowed monitoring allows for detection of which cylinder knock occurred on
Adjustable ignition retard (course and fine responses)
Knock correction per cylinder (sequential ignition must be enabled)
Multiple Engine Protection and fault mode strategies
Check Engine Light activation (solid and flash codes supported)
Low Oil Pressure Warning System (illuminates CEL)
Limp Home Mode
Set low/high limits for all major sensors and activate engine limp mode or shut down responses
Water/Meth Injection Low fluid Level
Wideband O2 / AFR Safety
Intelligent Knock Detection and Correction (see relevant topic above for more info)
Generous spare I/O for any standard/custom I/O needs
Configurable On/Off (digital) and PWM outputs
Control any relay controlled device or solenoid
Fan Control (multiple)
Intercooler cooling spray (CO2/etc)
Torque Converter (TCC) Lockup
Auxiliary Fuel Pump
Multipupose/Generic Closed Loop Control Outputs
Spare analog inputs for external sensors
Supports standard automotive temperature or pressure sensors
Air Conditioner Control with feed-forward Idle-Up
Proactively increases idle vale duty cycle (PWM valves) or number of steps (stepper valves) before activating A/C compressor
Automatic compressor shutoff at programmable throttle position or RPM thresholds
Automatic cooling fan activation with A/C, user configurable
Cooling Fan Control
Programmable fan on and off activation points
Can be configured to run fan with engine running only, or when engine is running and not running
Feed-forward idle up for use with large, high demand fans
Configurable fan deactivation based on TPS or VSS
Alternator Field Control/Voltage Regulation
Multiple open and closed loop strategies
Configurable voltage and temperature monitoring
Seperate target voltages for afterstart, normal operation, over run, and WOT
Warning lamp output if voltage is above or below target
Comprehensive Test Modes
Test all outputs for proper functionality and verify wiring before starting the engine
Controls all fuel injector outputs, ignition outputs, idle valve, and general purpose outputs
Outputs can be tested for on & off or PWM pulse functionality
Injector and spark disable mode, allows checking for suspected problematic cylinder by electronically preventing combustion event
CAN Support for I/O expansion – virtually limitless I/O capability!
Up to 16 EGT inputs via CAN Expansion
Add fuel/engine shutdown capable
CAN Support for 3rd party dash devices
Currently offers support for AIM, Race Technology, Traqmate, and Race Capture. Racepak is in the works.
Pre-defined “simple” as well as fully configurable CAN broadcasting modes
Standard 11-bit message headers
Allows for simple integration with any 3rd party devices
Use your Android phone or tablet as your dashboard or datalogger
Allows accelerometer and GPS data overlaid on your datalogs
Requires Android device and serial to bluetooth adapter, not included
VEAnalyze Live feature is capable of automatically tuning fuel (VE) tables in real time
MS3-Pro comes fully loaded and fully enabled, there are no additional features to "unlock" or hidden upcharges to gain access to any
Compact, Efficient & Robust Design
Small form factor, appx 7” x 4” x 2”, only weighs about a half a pound!
Circuitry optimized for efficiency, low power usage, and no generation of heat
No Dark Current!
No power draw when system is off. MS3-Pro will not discharge your expensive race battery when your vehicle is in storage.
Field Upgradeable Firmware – enable newly added features with a simple firmware update!
Firmware is constantly under development and updates are easy to load via simple software interface.
