TSP 454 C.I.D. LSx Long-Block

Regular price $13,399.99
Sale price $13,399.99 Regular price
Sale Sold out
Unit price
Shipping calculated at checkout.
This is a pre order item. We will ship it when it comes in stock.

Racing Use Only, Not Legal for Road Use

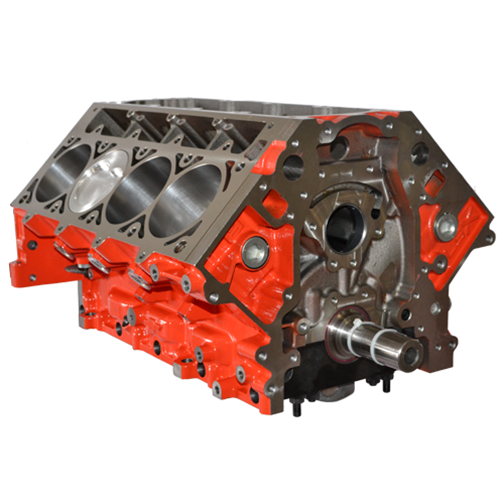

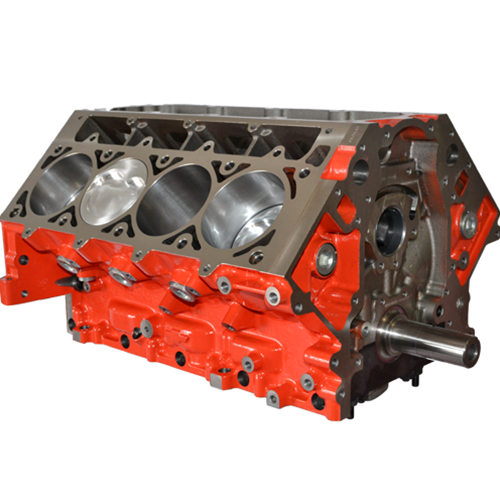

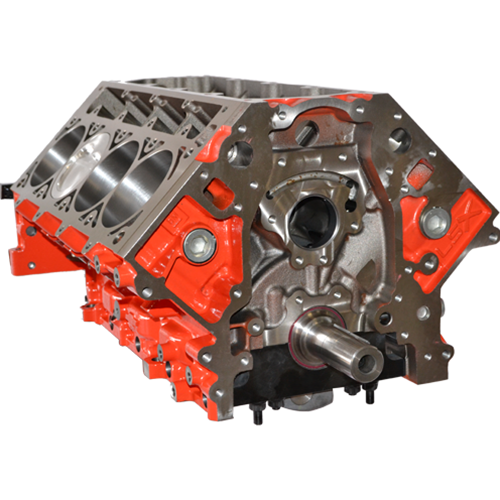

All Texas Speed & Performance 454 C.I.D. LSx long-blocks use a new GM Performance Parts LSx iron block! The standard price includes a fully-assembled GM LSx short-block with your choice of 4.10" or 4.125" stroke crankshaft with a 24X or 58X reluctor wheel.

The standard price also includes your choice of a Wiseco 4.185" -2.8cc or -7cc flat-top piston set. All Wiseco pistons offered are built to accommodate LS1, LS2, LS6, L92, LS3, and most aftermarket cylinder heads and valve configuration.

Any TSP 454 LSx will use a 4.185" bore piston set unless otherwise noted. Custom builds are available. We offer multiple brands of connecting rods and crankshafts to suit any type of application. Every engine will come standard with the necessary oil and coolant plugs already installed in the block. We do offer an optional conversion package that will include the LS2 timing cover with a camshaft position sensor, LS2 valley cover, LS2 lifter trays, LS2-specific timing set, and plug-n-play harness extensions for the camshaft position and knock sensor harnesses. This will be required if you are installing the engine into an LS1 vehicle. Feel free to give us a call, and we will be more than happy to put an itemized estimate together for you! We also offer additional discounts if you pay via a cashier's check or wire transfer. All engines will ship via truck freight, so if are purchasing online the shipping costs listed will NOT be correct! We will contact you with a shipping cost after your order has been placed. All prices listed do not include the applicable shipping costs!

If you are planning to use over a 150 HP shot of nitrous, we would recommend building a 4.00" stroke and 4.125" bore engine. The 4.00" stroke will allow for a thicker crown on the piston, and the smaller bore size will allow for added material between the cylinders. The 454 C.I.D. LSx standard-deck engine will be an ideal choice for someone looking to stay naturally-aspirated. All of our engines with Wiseco pistons will use a Napier second ring for maximum oil control. This is just another step that we take with all TSP short-blocks to ensure you get the best quality possible!

Our TSP 454 C.I.D. LSx long-block assembly will include the following items:

Precision Race Components 247cc 6-Bolt Cylinder Heads
Your Choice of TSP Camshaft
LS2, LS3, or LS7-Specific Timing Set
Johnson Hydraulic-Roller Lifter Set with Tie Bars
TSP Hardened Chromemoly Pushrods
ARP Head Stud Kit for 6-Bolt Cylinder Heads
Cometic MLS 6-Bolt Cylinder Head Gaskets
Bolts, Gaskets, & Other GM Items Included: GMPP Camshaft Retainer Plate with Bolts, Rear Main Seal Housing Gasket, Timing Cover Gasket, LS2 Valley Cover Gasket, Oil Pump O-Ring, ARP Balancer Pulley Bolt, Oil Pan Gasket, Water Pump Gaskets, Rear Main Seal, Front Crankshaft Seal, Cylinder Head Dowel Pins
We do offer an upgrade to 1/2" head studs. The price listed for the 1/2" head stud upgrade will include the cost of the ARP hardware, as well as the necessary machine work. All of the PRC aftermarket casting cylinder heads already have the larger bolt holes to accommodate 1/2" head studs.

The standard cylinder heads in the long-block assembly come with the PRC cathedral-port 247cc cylinder heads. This will be the option to choose if you are wanting to stay with a cathedral-port cylinder head and intake manifold design. The LS3 and LS7 cylinder heads will also require their corresponding intake manifold to fit. If you would like to include rocker arms with your engine, be sure to select the appropriate set that corresponds with the cylinder heads you are ordering! The PRC 247cc cylinder heads will require an LS1-style rocker arm set, the PRC 260cc LS3 cylinder heads will require an LS3-style rocker arm set, and the PRC LS7 cylinder heads will require an LS7-style rocker arm set. We have listed the GM rocker arm sets with bolts that include the Comp Cams trunion upgrade kit. This is highly recommended since the factory rocker arms are known for losing needle bearings with aftermarket camshafts!

When selecting your crankshaft, you will see options for a long-snout dry-sump crankshaft for factory GM dry-sump oiling. This is what you will need if the engine is being installed in a 2006+ Corvette Z06, Grand Sport, or ZR1. When you select a dry-sump crankshaft, we will automatically make the appropriate changes to the remainder of your engine build. The dry-sump crank cannot use a TSP ported LS6 oil pump, so we will install a new GM dry-sump-specific oil pump. It will also include other dry-sump-specific items, such as exhaust manifold gaskets, oil pan gasket, and balancer pulley bolt. A factory GM dry-sump block does NOT have a provision for an oil dipstick tube, so the dipstick hole on the LSx block will need to be plugged for these applications. We do offer the oil dipstick plug if you need one.

We also offer turn-key long-blocks that will include your choice of oil pan, intake manifold, throttle body, etc. We do offer many upgrades to customize your engine, such as ARP bolts and studs, Cometic head gaskets, etc. Please give us a call, and we will be happy to put an itemized estimate together for you. We also offer expedited service to be able to have your engine built and ready to ship in as little as five business days! The build time will vary according to parts availability. Give us a call for more information!

All TSP engines will include two oil changes worth of Driven Racing break-in oil for no additional cost. Proper break-in oil and procedures for your engine are just as important as the build process! The Driven Racing break-in oil allows for proper ring sealing against the cylinder walls upon start-up, as well as for the break-in period once the engine is up and running. Most off-the-shelf engine oils do not have the necessary ZDDP additives to allow for proper break-in of a new engine, and we want to take every precaution possible to ensure that your new TSP engine receives a proper break-in! We also offer the Driven Racing oil for your new engine once your break-in is complete. We recommend using either the HR2 conventional non-synthetic or the LS30 full synthetic oil. Please note that the Driven Racing LS30 is the ONLY synthetic oil we recommend using in your engine because it retains the necessary ZDDP additives.
