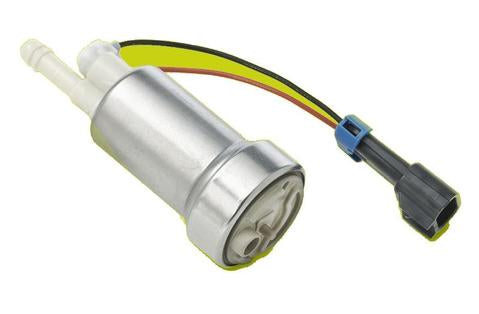

WALBRO HELLCAT 525LPH F90000285 FUEL PUMP - (UNIVERSAL E85 ETHANOL) ULTRA HIGH-PERFORMANCE

Highest flow in-tank brushed fuel pump

Horsepower: 900+ at 60PSI, naturally aspirated applications

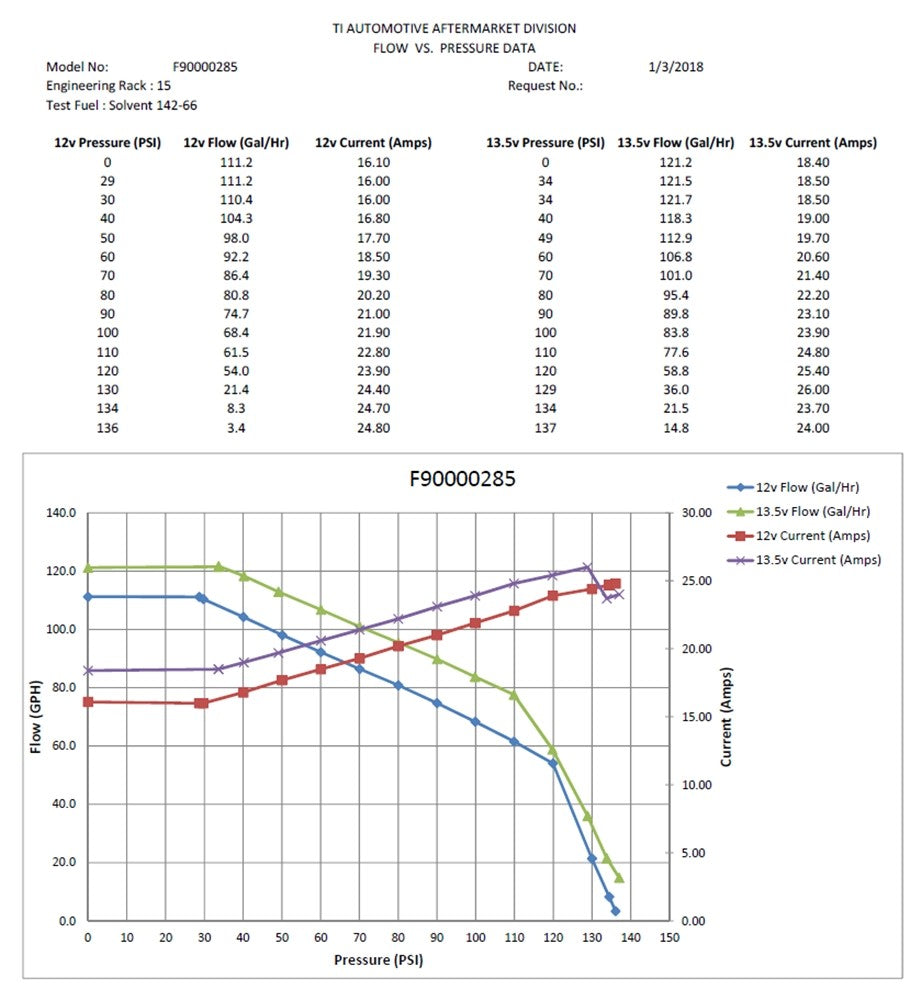

Flow Rate: 470lph @ 40psi (120+ gph)

Fuel: GAS & E85

TI Automotive is the builder of the most popular fuel pumps and modules for over 60 years under the Walbro brand name. We value this heritage and are proud to continue our legacy of reliability, performance and first-time fit. TI Automotive fuel pumps, fuel pump kits, module assemblies, filters and accessories deliver the feed you need for the power you demand. These products deliver unquestioned fuel flow across a wide pressure range to support outrageous horsepower. TI Automotive fuel pumps are available for in-tank or in-line needs across a variety of fuels featuring the award winning 39/50 in-tank pump and the GSS line featuring the popular 255LPH pump. They deliver high-pressure, high flow performance for engines with more than 500hp. Pump kits, filters and accessories are available to help you with your installation needs and are designed as direct-fit replacements. Our products are engineered to win through decades of technical expertise and by settling for nothing less than superior hot fuel performance. Proudly union made in TI Automotive?s Caro, Michigan plant across 5 fuel pump and 14 modules assembly lines. Our fuel pumps and modules are never manufactured or assembled by a third party or sourced from an outside company. Fluid Thinking shapes the mindset of TI Automotive.

IMPORTANT** You cannot wire an aftermarket pump directly to the factory trigger wires. The factory wires will only allow a 12 amp draw pump which most OEM pumps are. A high performance pump draws 13.6 amps. Therefore, you need to install a fuel pump relay at least 30 amps with a 10 gauge feed directly from the battery (fused of course) and use the factory power for the original fuel pump to trigger the relay.
